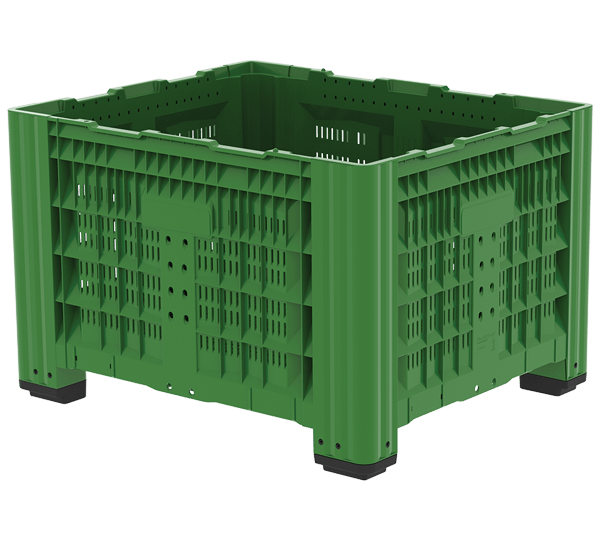

HomeProductsPackagingBox PalletsPG 785A Big Box
Volume:
690 lit
Dimensions:
1200x1000x785 mm
(±5mm)
Weight:
4 feet 36 kg ± 3%
2 skids 38.5 kg ± 3%
Lid weight (option): 7.5 kg ± 3%
Max payload (load capacity):
Max Load per box: 500 kg
Max static load: 5000 kg
Material:
HDPE
Truck capacity:
| Truck (mega H=3.05m) |  |  |
|---|---|---|
| Truck capacity: | 140pcs 130pcs | 168 pcs (4 feet) 156 pcs (2 skids) |
Volume:
690 lit
Weight:
4 feet 36 kg ± 3%
2 skids 38.5 kg ± 3%
Lid weight (option): 7.5 kg ± 3%
Material:
HDPE
Dimensions:
1200x1000x785 mm
(±5mm)
Max payload (load capacity):
Max Load per box: 500 kg
Max static load: 5000 kg
Truck capacity:
| Truck (mega H=3.05m) | | |
|---|---|---|
| Truck capacity: | 140pcs 130pcs | 168 pcs (4 feet) 156 pcs (2 skids) |
Properties:
- Stackable
- Smooth inner walls for easy cleaning
- Stack antislip protection
- Improved strenth and impact resistant
- Weatherproof; UV and chemical resistant; Pest resistant
- Food safe
- 100% Recyclable
Perforated walls and bottom for optimal airflow. Ideal for transport and storage of fruit and vegetables.
Dimensions
Options
– Any standard RAL color
– Embossed marking
– QR code, numbering and text thermal transfer
– Transponder-ready
– Versions: 4 feet, 2 skids, 3 skids, 4 wheels (reduced load capacity)
– Lid
Colors
Other colors at customer’s request
Technical specification
